Engineered in India
Trace the Fault.
Understand Your DC.
Finds an earth fault on a live DC bank without shutting protection down or draining the system.
About the instrument
Built around the
work on site.
DC earth-fault investigation depends on the network layout and operating conditions. Discuss your DC system and maintenance procedures with CSD before confirming the test arrangement and accessories.
T-DCEFL
An earth fault on a substation DC system can stop protection working when it matters most. The T-DCEFL finds it while the system stays live.
It injects a small test signal and follows it branch by branch until the faulty circuit is found — no shutdown, no draining of the battery.
Finds an earth fault on a live DC bank without shutting protection down or draining the system. The final configuration, accessories and operating method should be reviewed against the actual application and site procedures.
Designed for the conditions where the measurement happens.
T-DCEFL
DC Earth Fault Location
Stays live
No shutdown of protection
Branch by branch
Narrows down the faulty circuit

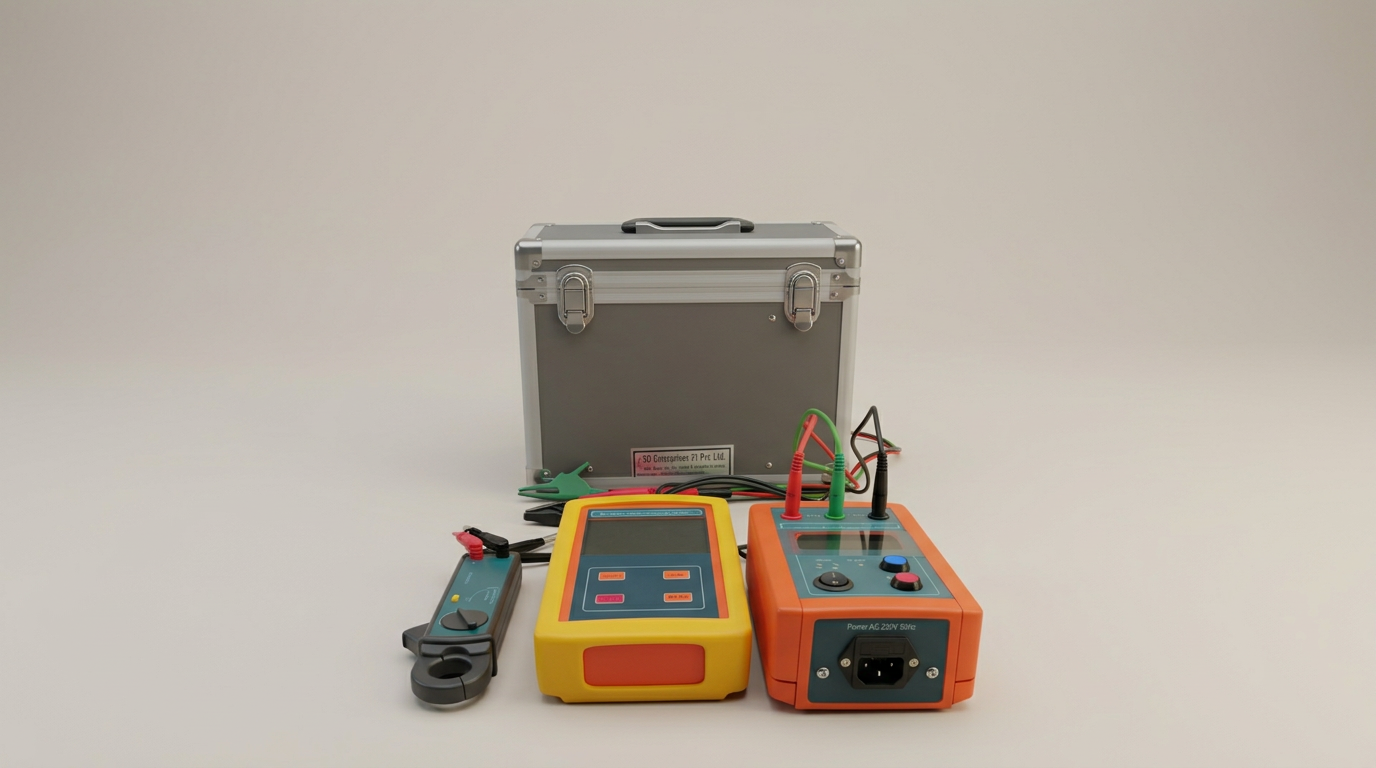

Complete kit
Everything in one case
